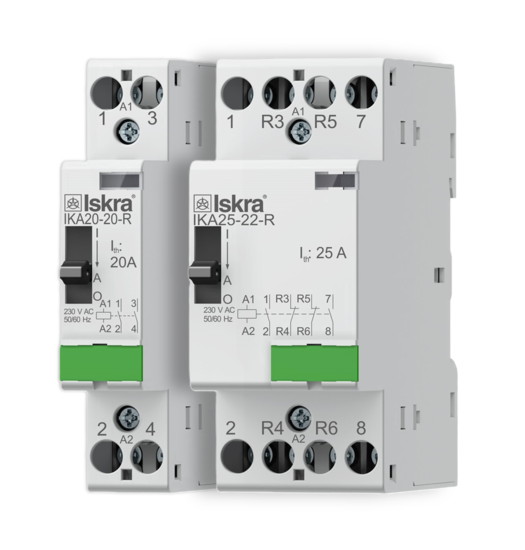

Installation contactors with manual operation up to 25 A (IK-R)

Description

Benefits

Installation contactors providing not only basic functions but also manual handling.

Description of individual positions of handle:

• A: The contactor functions as installation contactors without handle.

• O: The coil is permanently switched off.
• I: Shifting the handle from A to I the make contacts are closed, and break contacts are open. When control voltage is applied, the handle is automatically set to A.


  Features

  REMOTE SWITCHING AND MANUAL OPERATION
  Switching of lighting, electric heating, heat pumps, air-conditions, electrical eguipment, single and three-phase motors …

  CONTROL
  AC coil + manual operation
  AC/DC coil with rectifier and varistor for overvoltage protection + manual operation

  Types

INSTALLATION CONTACTORS OFFER
Installation contactors IKA-R with AC coil (rated currents AC-1: 20 A, 25 A, 32 A)
Installation contactors IKD-R with AC/DC coil (rated currents AC-1: 20 A, 25 A, 32 A)
Auxiliary switches IKN

Applications

Installation contactors with manual operation are mainly used for switching on the users (e.g. switching on the users at unfavourable tariff).
