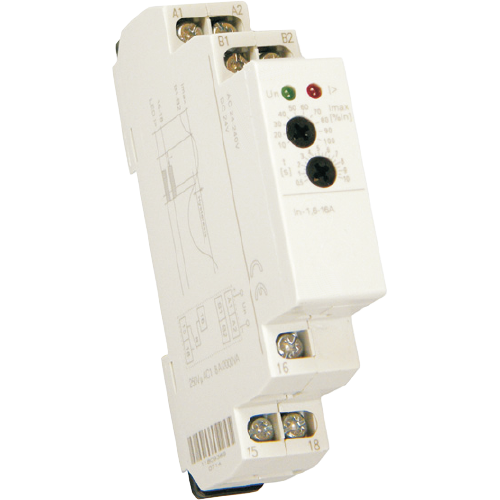

Description
Features
- Flexible adjustment by potentiometer, choise of 6 ranges: 0.05 – 0.5 A; 0.1 – 1 A; 0.2 – 2 A; 0.5 – 5 A; 0.8 – 8 A; 1.6 – 16 A
- Adjustable delay 0.5 – 10 s to eliminate short current peaks
- Possible to use current scanning from current transformer – up to 600 A
- Universal supply AC 24 – 240 V and DC 24 V
- Supply is not galvanically separated from measured current, it must be in the same phase
- Output contact: 1 x changeover 8 A
- 1-phase, 1-MODULE, DIN rail mounting
